Nitric Acid Storage Bund
Yarwin, QLD, Australia
MATERIALS USED
Metz Epoxy Primer
Metz Viton Membrane
Metz 33EN-VG Corrosion Resistant Epoxy Novolac Vertical Grade Topping
Metz 4HB-EN Epoxy Novolac Corrosion Resistant Coating
Metz 7K Potassium Silicate Cement
Metz Viton Caulk One Part Fluoroelastomer Sealant
Metz 18mm & 25mm Acid Tiles
PROJECT SUMMARY
Metz were engaged to deliver a fully integrated chemical resistant lining system for a newly constructed Nitric Acid Bund in Yarwun, QLD. The project required a high performance solution capable of protecting concrete substrates from long term exposure to highly aggressive nitric acid.
Due to the extreme chemical environment every stage of the installation needed to follow strict procedures including surface preparation, priming, membrane application, rendering, tiling and sealing. All works were executed using certified Metz materials and in strict accordance with Metz installation procedures and product performance specifications to ensure durability and compliance.

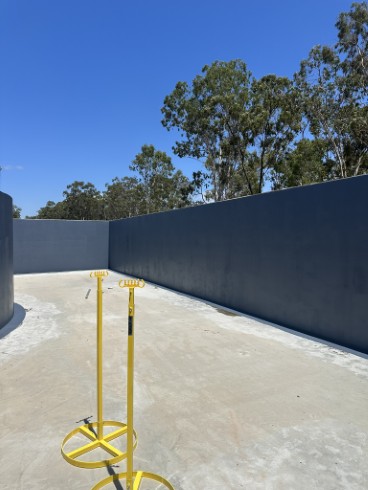

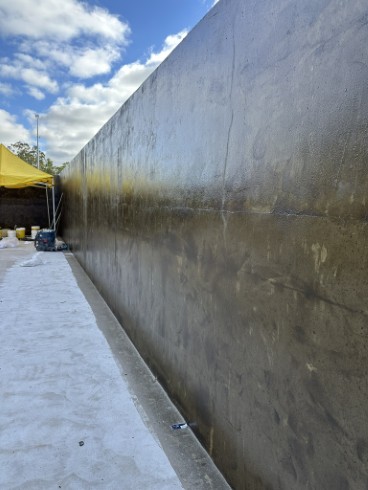

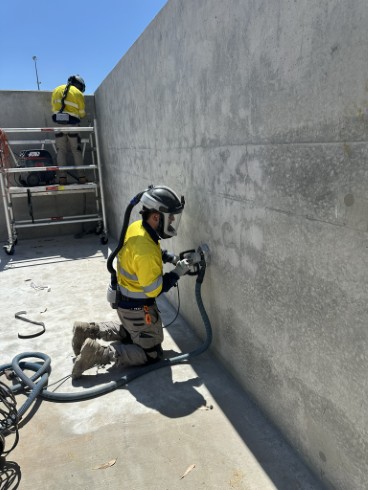

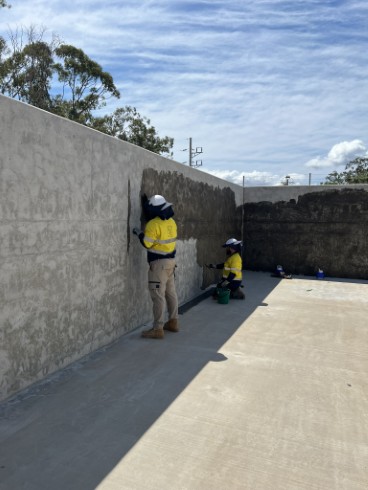

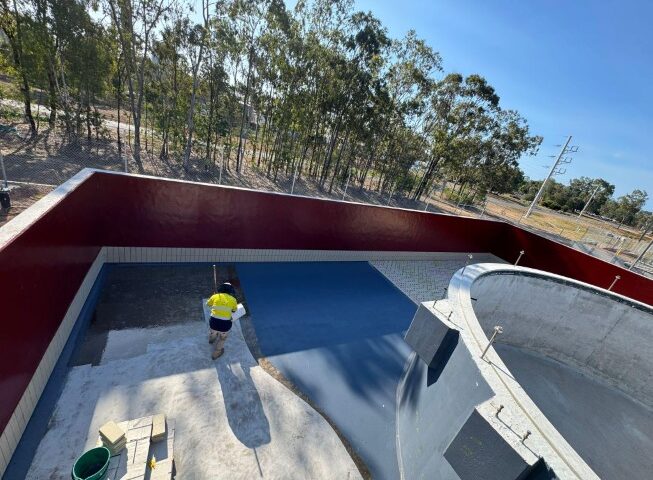

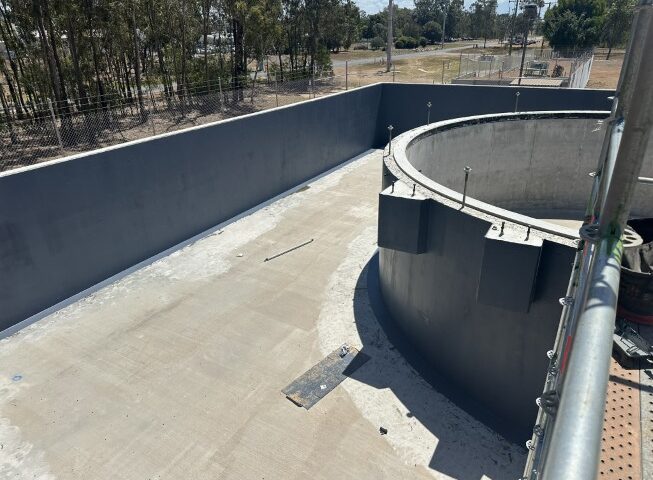

Walls were mechanically ground to remove laitance, contaminants and imperfections to prepare the surface. Metz Epoxy Primer was applied to the walls providing a sealed, fully bonded base for all subsequent layers. Followed by a continuous layer of Metz Viton Membrane over the primed wall to form a durable chemical barrier beneath the Metz 33EN-VG epoxy novolac render. Metz 33EN-VG creates a seamless, highlight chemical resistant wall lining ready for overcoating with Metz 4HB-EN. Metz 18mm Acid Tiles were installed as wall skirting and grouted with Metz 7K potassium silicate cement.

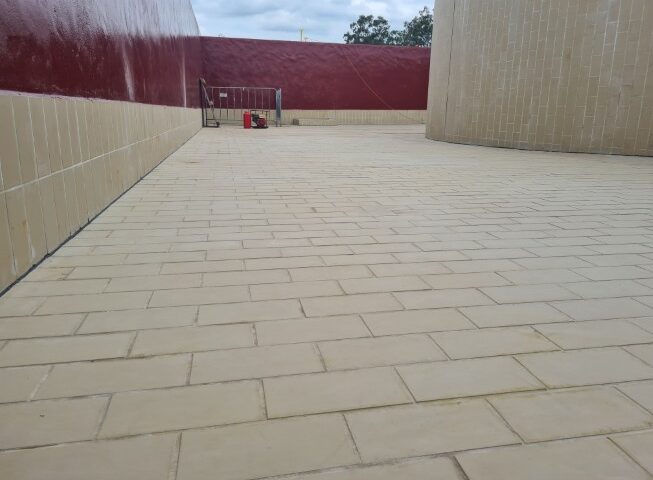

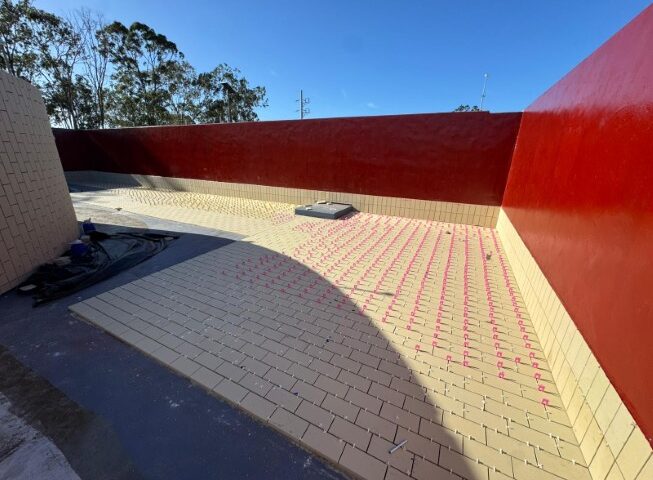

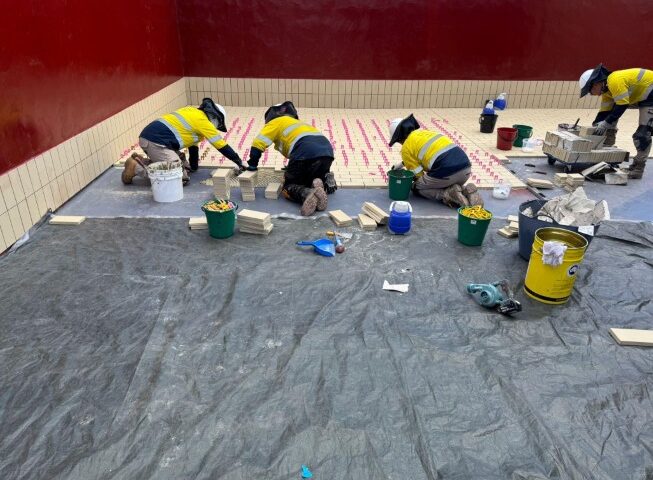

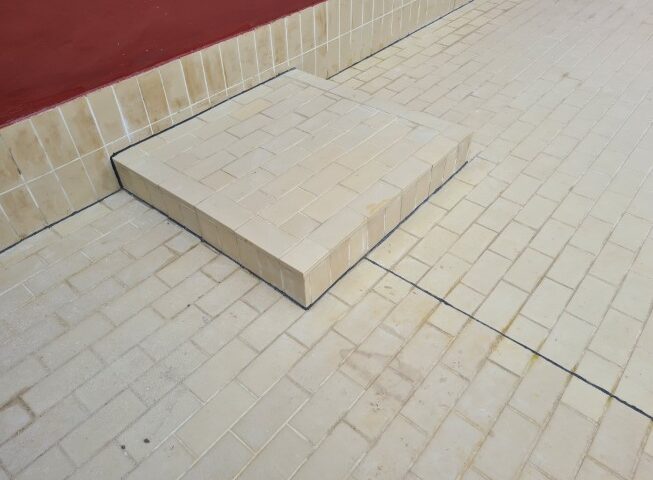

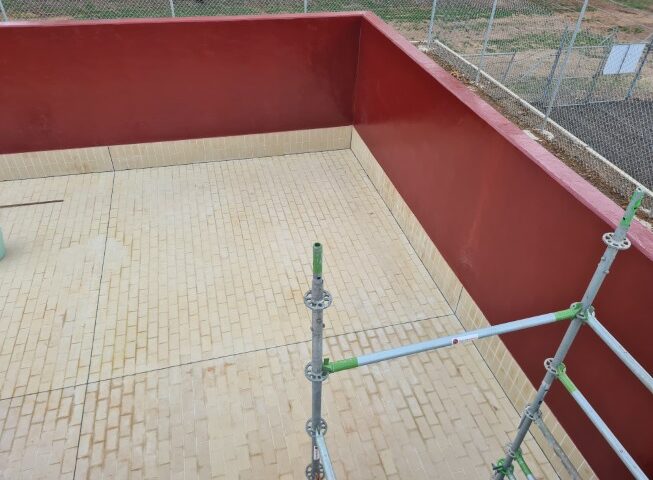

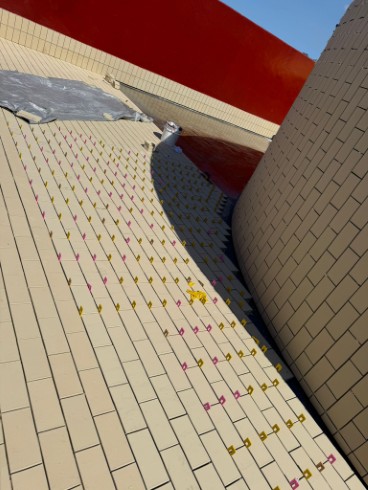

Floors were ground for the sealing and adhesion of Metz Epoxy Primer to create maximum chemical barrier protection beneath the Metz 25mm Acid Tiles . All movement joints were sealed with Metz Viton Caulk One Part to ensure normal structural movement that would not compromise chemical durability.
Metz delivered a low maintenance containment solution delivering long term corrosion protection for critical chemical handling infrastructure, meeting all relevant performance criteria.
Technical Data Sheets for materials installed on this project
METZ EPOXY PRIMER
EPOXY PRIMER FOR MULTIPLE APPLICATIONS
Typical Uses : Breweries & Soft Drink plants,Chemical plants,Confectionery plants,Dairy and Milk Products processing,Food Processing plants,Poultry & Meat plants,prior to using many Metz epoxy & polyurethanes
METZ VITON™ COATING/MEMBRANE
FLUOROELASTOMER COATING/MEMBRANE
Typical Uses : Acid plants,Fertiliser plants,Oil Refineries,Secondary Containment linings
METZ 33EN-VG
CORROSION RESISTANT EPOXY NOVOLAC RENDER
Typical Uses : Acid plants,CIP Rooms in Food & Beverage plants,Food Processing plants,Oil Refineries,Poultry & Meat plants,Secondary Containment linings,Steel Mills,Water Treatment & Sewerage Plant Infrastructure
METZ 4HB-EN
EPOXY NOVOLAC CORROSION RESISTANT COATING
Typical Uses : Acid plants,CIP Rooms,Fertiliser plants,Food and Beverage facilities,Food Processing plants,Oil Refineries,Poultry and Meat Processing plants,Secondary Containment Areas,Steel Mills,Waste Water Treatment plants
METZ 7K
POTASSIUM SILICATE CEMENT
Typical Uses : Acid Tanks,Fertiliser plants,Floors and drain in acid storage areas,Molten Sulphur Pits,Pickling Lines,Power Station Chimneys,Sewage Treatments,Waste Acid Collection Sumps
METZ VITON™ CAULK ONE PART
FLUOROELASTOMER SEALANT
Typical Uses : Acid plants,Fertiliser plants,Laboratory Applications,Oil Refineries,Secondary Containment Areas
METZ ACID TILE
ACID RESISTANT INDUSTRIAL TILE
Typical Uses : Bottling plants,Breweries,Pits,Production Floors,Secondary Containment Areas,Sumps,Tanker Unloading Bays,Trenches
