Chlor-Alkali Plant Floor & Bund Area Repairs
MATERIALS USED
Metz 33EN-TG Corrosion Resistant Epoxy Novolac Floor Screed – 7mm
Metz 33EN-VG Corrosion Resistant Epoxy Novolac Wall Render – 5mm
Metz 4HB-EN 100% Solids Epoxy Novolac Corrosion Resistant Coating
Metz 8 Chemical Resistant Caulking Compound
PROJECT SUMMARY

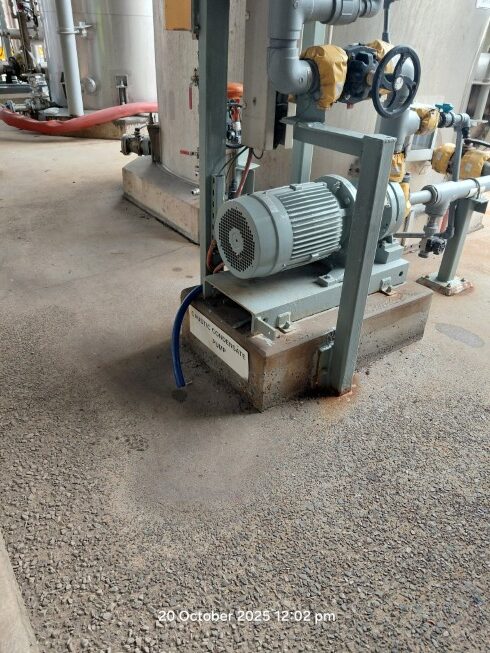

Metz were engaged to bring back to life the floor in a Chlor-Alkali plant in Botany, NSW. The floor and the bund areas were badly damaged due to exposure to chemicals used within the area.

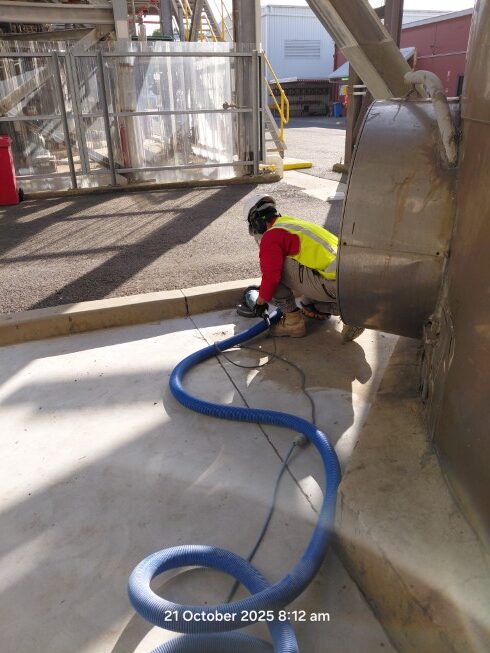

Preparation of the floor and wall areas was the key to success on this job, mechanical grind and high-pressure water blasting was done, several times over as overnight spills would occur.

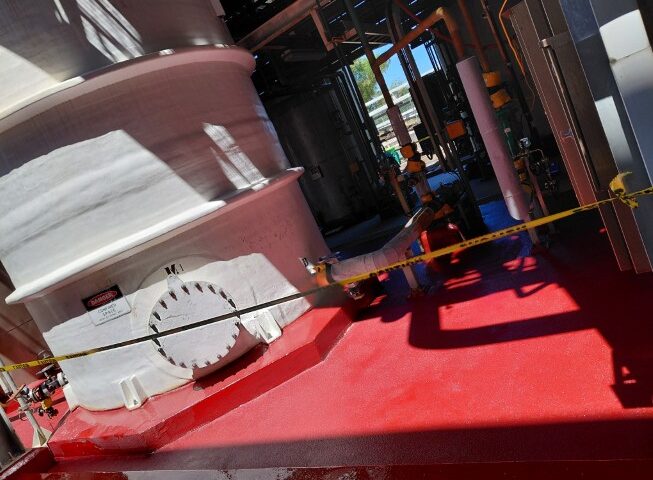

Cracks were chased out and repaired. Vertical surfaces were repaired with Metz 33EN-VG vertical grade corrosion resistant epoxy novolac render at 7mm and overcoated with Metz 4HB- EN 100% solids epoxy novolac coating.

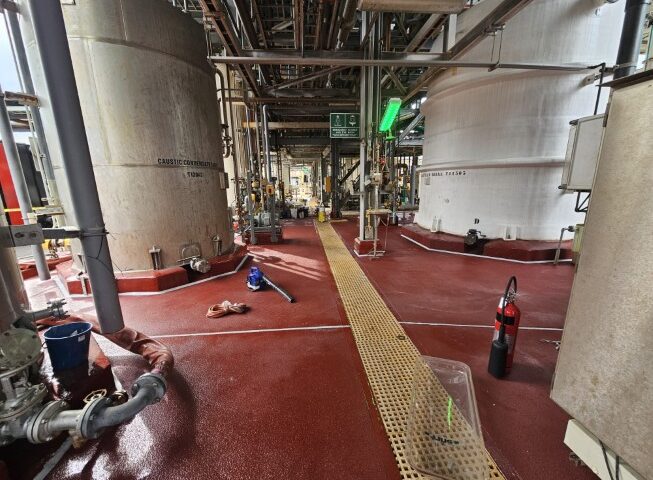

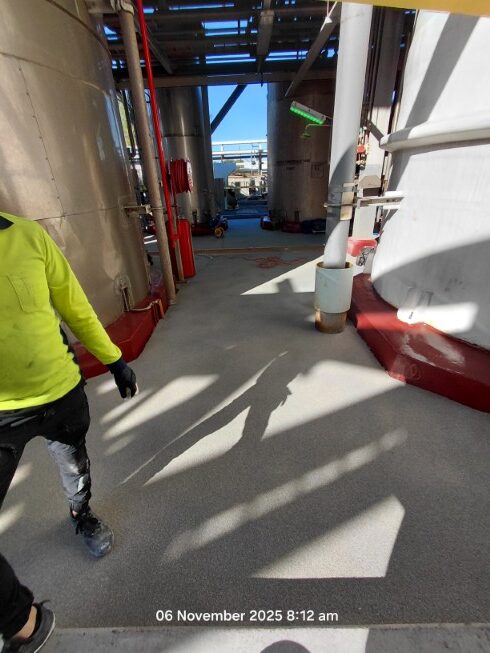

The floor area was repaired/laid with Metz 33EN-TG corrosion resistant epoxy novolac screed at 7mm and overcoated with Metz 4HB-EN. Slip resistance of R12 was also achieved on the floor.
Metz 8 chemical resistant caulking was used on all the joints to allow for movement.
Technical Data Sheets for materials installed on this project
METZ 33EN-TG
CORROSION RESISTANT EPOXY NOVOLAC TOPPING
Typical Uses : Acid plants,CIP Rooms in Food & Beverage plants,Food Processing plants,Oil Refineries,Poultry & Meat plants,Secondary Containment linings,Steel Mills,Water Treatment & Sewerage Plant Infrastructure
METZ 33EN-VG
CORROSION RESISTANT EPOXY NOVOLAC RENDER
Typical Uses : Acid plants,CIP Rooms in Food & Beverage plants,Food Processing plants,Oil Refineries,Poultry & Meat plants,Secondary Containment linings,Steel Mills,Water Treatment & Sewerage Plant Infrastructure
METZ 4HB-EN
EPOXY NOVOLAC CORROSION RESISTANT COATING
Typical Uses : Acid plants,CIP Rooms,Fertiliser plants,Food and Beverage facilities,Food Processing plants,Oil Refineries,Poultry and Meat Processing plants,Secondary Containment Areas,Steel Mills,Waste Water Treatment plants
